CÔNG TY TNHH GIẢI PHÁP CÔNG NGHỆ KHÁNH LINH

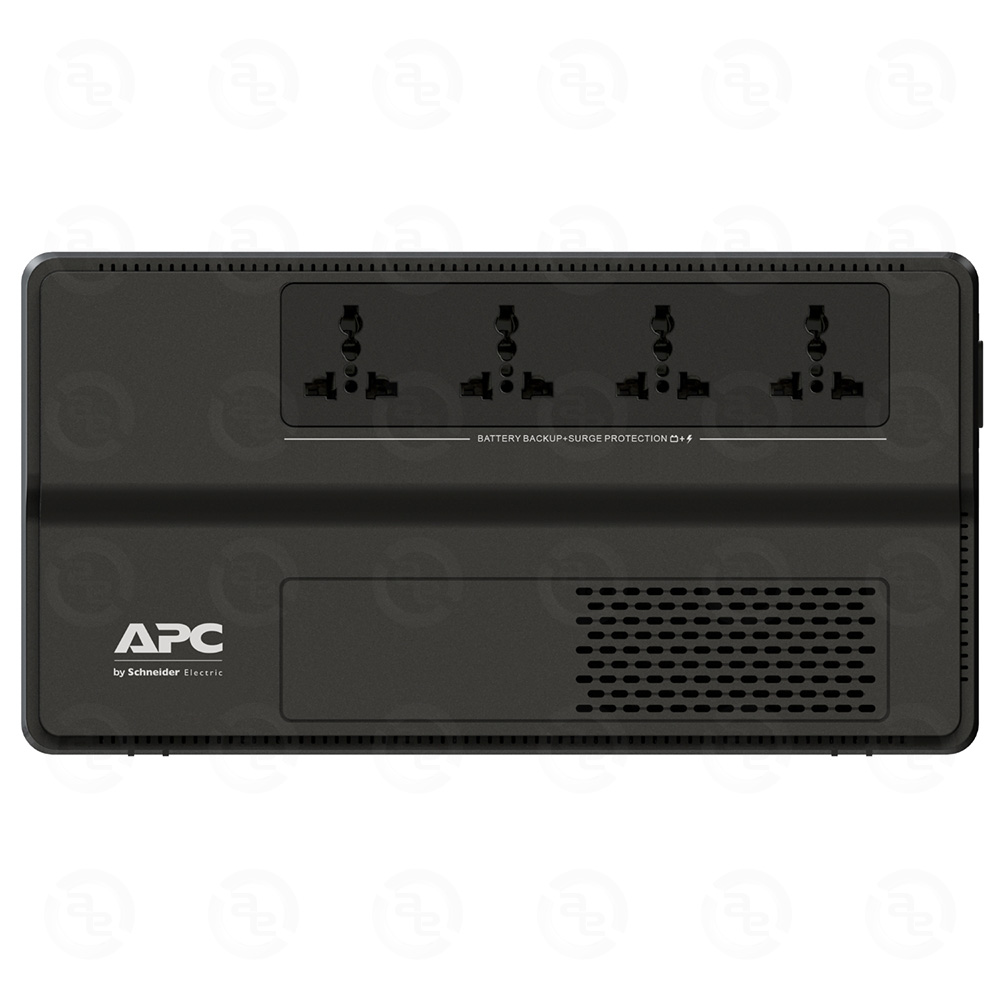

Bộ Lưu Điện UPS APC Easy BV1000I-MS (600W-1000VA)

1.940.000 đ

Mã sản phẩm:

Giảm giá:
Tình trạng:
Còn hàng
Thương hiệu:
Bộ lưu điện: Line Interactive Hãng sản xuất: APC by Schneider Electric Phân dòng: Easy UPS Series Công suất: 600WĐiện áp: 1000VA Thiết kế (T/R/B): BV Series - DẠNG BRICK TIẾT KIỆM NĂNG LƯỢNG AVR: Có EPO: Không Có BMP: Không Có Cổng cắm kết nối: 1* Dây nguồn 3 chân (Đầu vào) / 4* Cổng nguồn 3 chân (Đầu ra) Thời gian chịu tải: 10 Watts (150 Minutes) - 180 Watts (10 Minutes) Bảo vệ tăng dòng dữ liệu: Không Có
THÊM VÀO GIỎ HÀNG
  • Chia sẻ qua viber bài: Bộ Lưu Điện UPS APC Easy BV1000I-MS (600W-1000VA)
  • Chia sẻ qua reddit bài:Bộ Lưu Điện UPS APC Easy BV1000I-MS (600W-1000VA)


OVERVIEW

Lead timeUsually in Stock

|MAIN

Main Input Voltage230 V
Main Output Voltage230 V
Rated power in W600 W
Rated power in VA1000 VA
Input Connection TypeNEMA 5-15P
Output Connection Type2.72
Cable length1.20 m
Number of cables1
Battery typeLead-acid battery
Provided equipmentUser manual

|Batteries & Runtime

Hiệu suấtView Efficiency Graph
Number of battery filled slots0
Number of battery free slots0
Battery recharge time8 h
Battery voltage12 V
Battery capacity9.0 Ah
Battery life3…5 year(s)
Replacement batteryRBC17
Extended runtime0

|General

Number of power module free slots0
Number of power module filled slots0
RedundantNo
UPS sizeWS

|Physical

ColourBlack
Height9.25 cm
Width16.05 cm
Depth30.5 cm
Net weight5.7 kg
Mounting preferenceNo preference
Mounting modeNot rack-mountable
Two post mountable0
USB compatibleNo

|Input

Network frequency50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits170...280 V

|Output

Maximum configurable power in W600 W
Output frequency50/60 Hz +/- 1 Hz unsynchronised
UPS typeLine interactive
Wave typeStepped approximation to a sinewave
Graph display1
Maximum configurable power in VA1000 VA
Transfer time6 ms typical : 10 ms maximum

|Conformance

Product certificationsCE
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

|Environmental

Ambient air temperature for operation0…40 °C
Relative humidity0…90 %
Operating altitude0...6667 ft
Ambient air temperature for storage0…90 %
Storage altitude0.00…15240.00 m
Acoustic level40 dBA
IP degree of protectionIP20

|Communications & Management

AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm

|Surge Protection and Filtering

Surge energy rate156 J

|Packing Units

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height23.7 cm
Package 1 Width37.3 cm
Package 1 Length14.3 cm
Package 1 Weight6 kg
SCC1410731304338250
