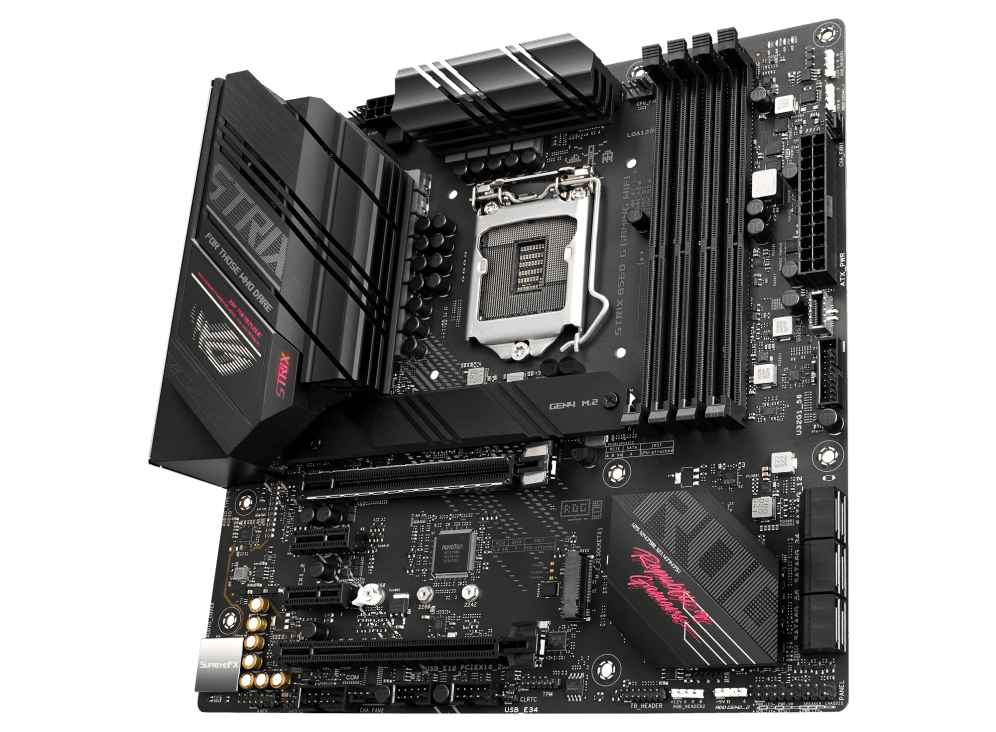

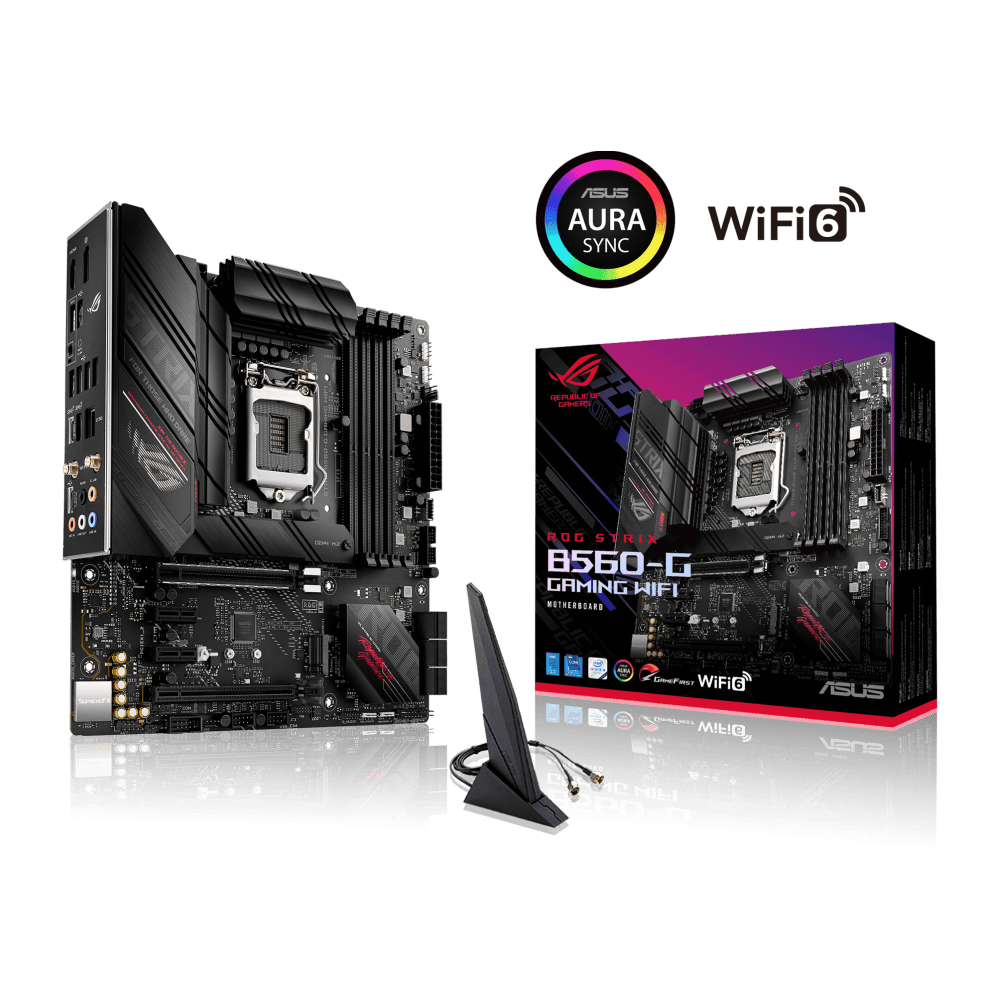

ASUS ROG STRIX B560-G GAMING WIFI

Tên Hãng

ASUS

Model

ROG STRIX B560-G GAMING WIFI

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

Memory Channels:4DDR4 (Dual channel)

Max Memory Size:128GB

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)
/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

- Intel® 11th processors support PCIe 4.0 x16 mode

- Intel®10th processors support PCIe 3.0 x16 mode

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

1 x TB Header (for add-on TB card)

1 x Thunderbolt™ header

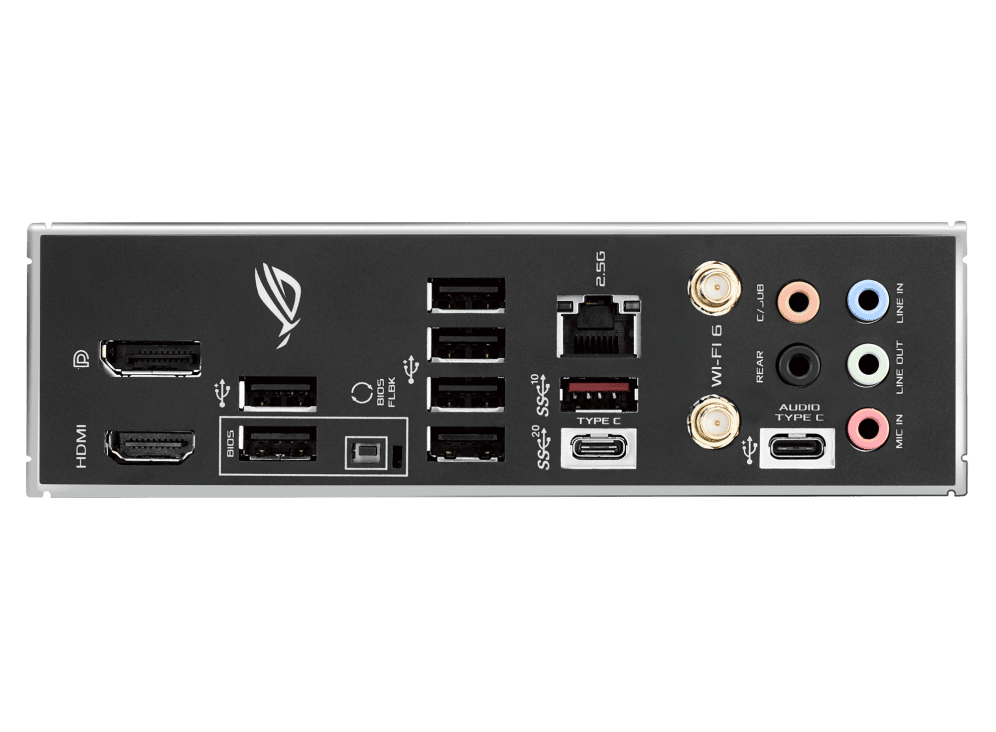

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C®)

1 x HDMI™ port

1 x DisplayPort

1 x ASUS Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™ button

LAN / Wireless

LAN:

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard
WIFI:
Intel® Wi-Fi 6

Kích cỡ

microATX

24.4cm x 24.4cm
